Turning / Technical reference
S20R-SSKCR/L09
Internal turning toolholder. Shank diameter 20 mm; Functional length 200 mm; Minimum bore diameter 25 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 187 · View full tableDrawing and dimensions

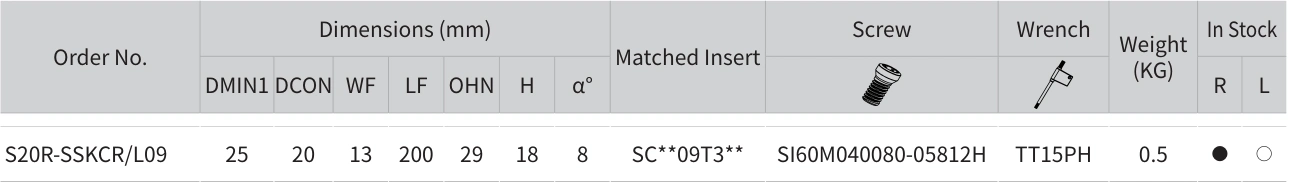

Data for S20R-SSKCR/L09
See the original PDF for this variant's drawing.
Documented data
- DMIN1
- DCON
- WF
- LF
- OHN
- H
- Screw
- Wrench
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 187 of the original PDF ↗
