SA300-SF-IC-RN4-20030A
Solid carbide end mill with 4 flutes, corner radius, long neck. Cutting diameter 20 mm; Cutting length 80 mm; Overall length 150 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 206 · View full tableDrawing and dimensions

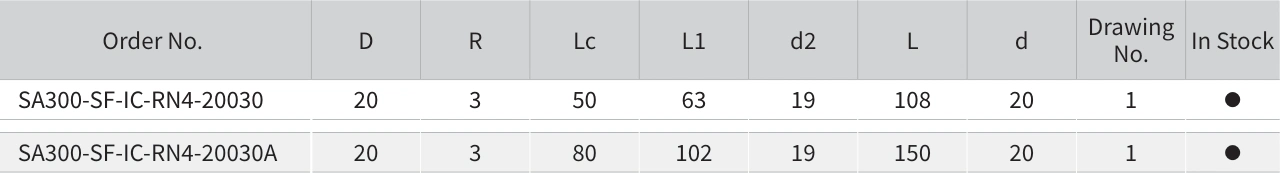

Data for SA300-SF-IC-RN4-20030A
Documented data
- D
- R
- Lc
- L1
- d2
- L
- d
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
