SHM200-BN2-0.1-0.3-K
Solid carbide end mill with 2 flutes, ball nose. Cutting diameter 0.1 mm; Cutting length 0.08 mm; Overall length 50 mm.
Price and availability to be confirmed in the quotation.

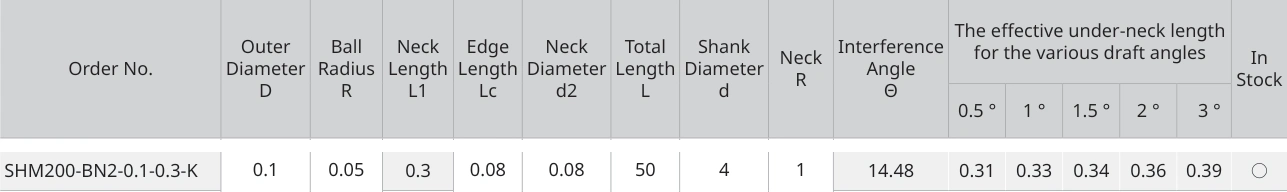

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 315 · View full tableDrawing and dimensions
Data for SHM200-BN2-0.1-0.3-K
Documented data
- D
- R
- L1
- Lc
- d2
- L
- d
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 315 of the original PDF ↗
