Milling / Technical reference
SNEX1203-GM
Indexable milling insert for slot milling. Inscribed circle diameter 12.7 mm; Thickness 3 mm.
Price and availability to be confirmed in the quotation.

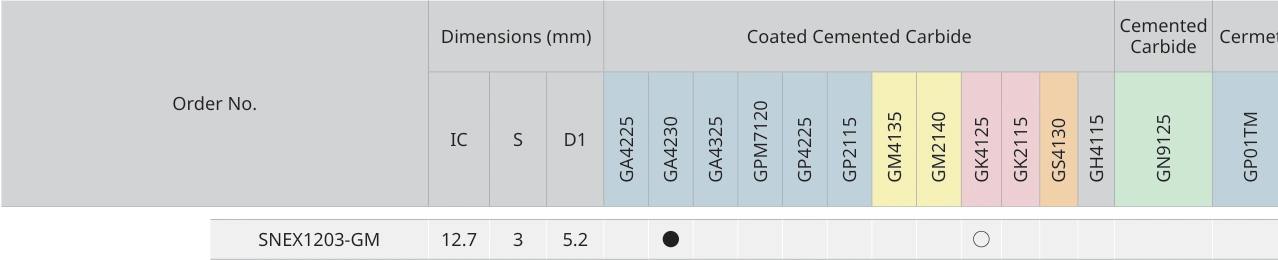

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 94 · View full tableDrawing and dimensions
Data for SNEX1203-GM
Documented data
- IC
- S
- D1
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 94 of the original PDF ↗
