T118-FDC-200250C-6HX
Forming tap, fluteless, with internal coolant supply. Metric thread M20×2.5. Threaded length 25 mm; Shank diameter 16 mm; Active length 69 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 142 · View full tableDrawing and dimensions

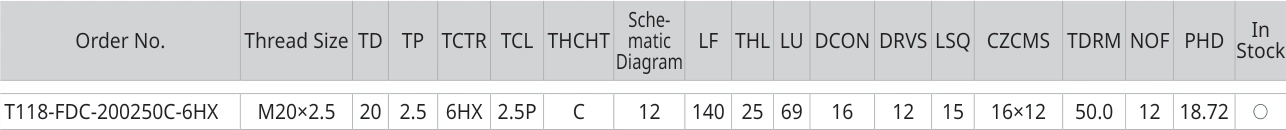

Data for T118-FDC-200250C-6HX
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 142 of the original PDF ↗
