Threading / Technical reference
T118-FDN-140125C-6HX
Forming tap, fluteless. Metric thread M14×1.25. Threaded length 20 mm; Shank diameter 11 mm; Active length 53 mm.
Price and availability to be confirmed in the quotation.

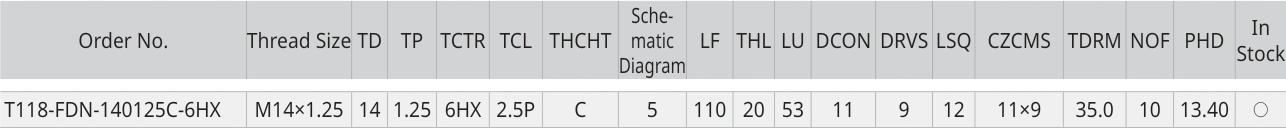

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 140 · View full tableDrawing and dimensions
Data for T118-FDN-140125C-6HX
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 140 of the original PDF ↗
