Threading / Technical reference
T118-FDN-270250D-6HX
Forming tap, fluteless. Metric thread M27×2.5. Threaded length 30 mm; Shank diameter 20 mm; Active length 78 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 141 · View full tableDrawing and dimensions

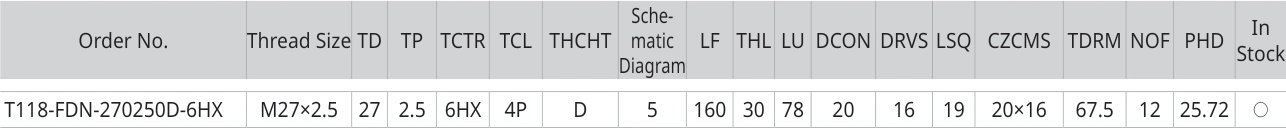

Data for T118-FDN-270250D-6HX
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 141 of the original PDF ↗
