T118-SDN-050080C-6HX
Spiral flute tap. Metric thread M5×0.8. Threaded length 10 mm; Shank diameter 6 mm; Active length 25 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 144 · View full tableDrawing and dimensions

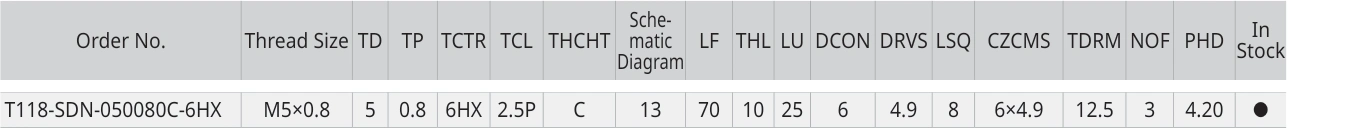

Data for T118-SDN-050080C-6HX
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
