T118-SDN-160150C-6HX
Spiral flute tap. Metric thread M16×1.5. Threaded length 20 mm; Shank diameter 12 mm; Active length 54 mm.
Price and availability to be confirmed in the quotation.

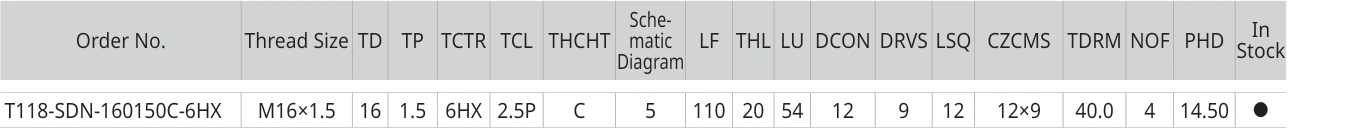

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 144 · View full tableDrawing and dimensions
Data for T118-SDN-160150C-6HX
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 144 of the original PDF ↗
