TCMT110204-SPL
Positive turning insert, 60° triangular, with hole. Inscribed circle diameter 6.35 mm; Thickness 2.38 mm; Nose radius 0.4 mm.
Price and availability to be confirmed in the quotation.

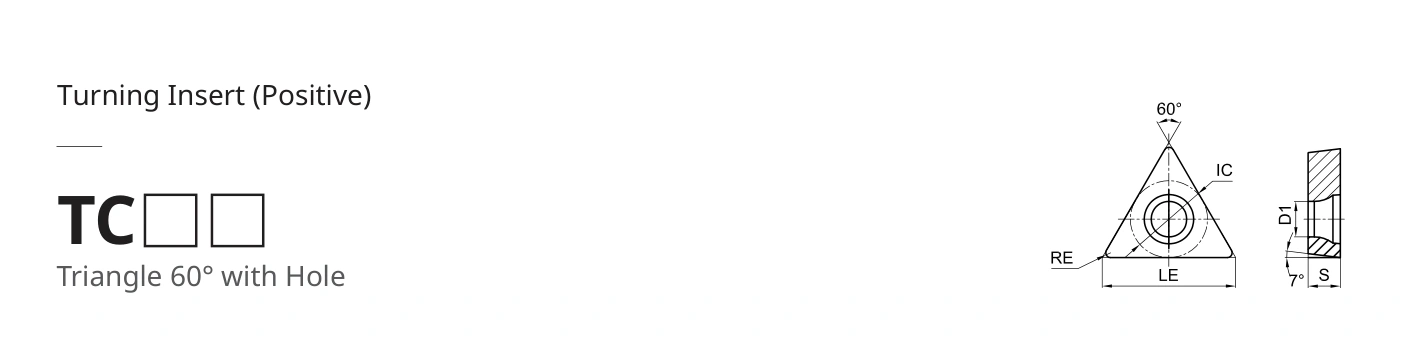

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 65 · View full tableDrawing and dimensions
Data for TCMT110204-SPL
Dimensions
- LE (mm)
- IC (mm)
- S (mm)
- D1 (mm)
- RE (mm)
Row data
- ermet · GP92TM
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
