TNGG160404M-AK
Negative turning insert, 60° triangular, with hole. Inscribed circle diameter 9.525 mm; Thickness 4.76 mm.
Price and availability to be confirmed in the quotation.

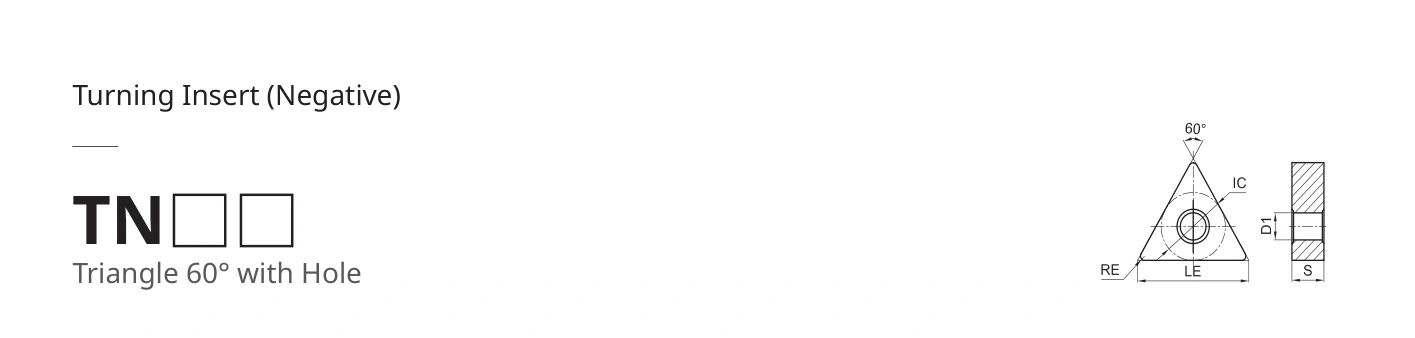

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 92 · View full tableDrawing and dimensions
Data for TNGG160404M-AK
Dimensions
- LE (mm)
- IC (mm)
- S (mm)
- D1 (mm)
- RE (mm)
Row data
- Coated cemented carbide · GAT7115
- Coated cemented carbide · GAT7120A
- Coated cemented carbide · GAT7125
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 92 of the original PDF ↗
