Turning / Technical reference
TPMT090208-TP
Positive turning insert, 60° triangular, with hole. Inscribed circle diameter 5.56 mm; Thickness 2.38 mm; Nose radius 0.8 mm.
Price and availability to be confirmed in the quotation.

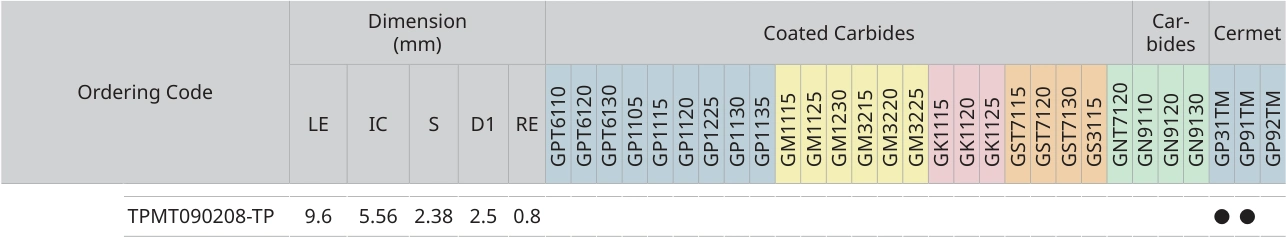

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 67 · View full tableDrawing and dimensions
Data for TPMT090208-TP
Documented data
- LE
- IC
- S
- D1
- RE
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 67 of the original PDF ↗
