VCGX110302-AL

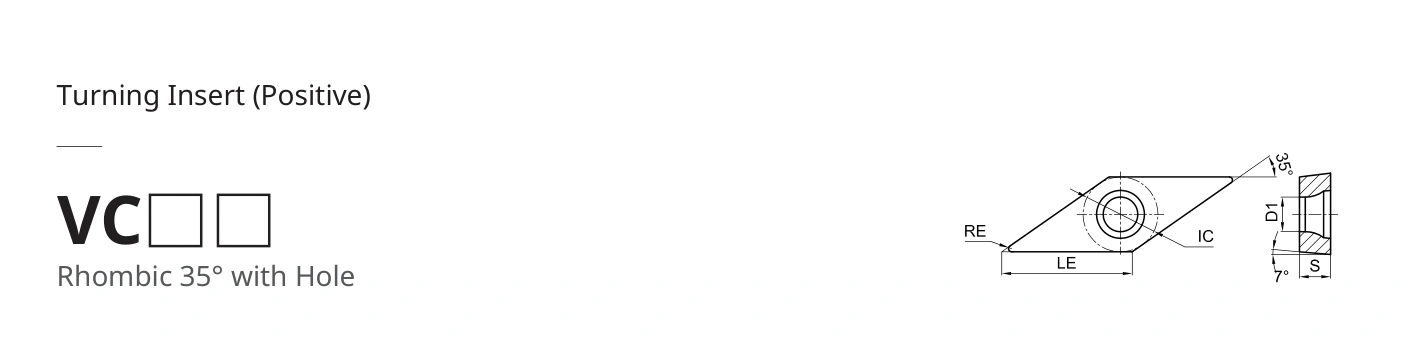

Positive turning insert, 35° rhombic, with hole. Inscribed circle diameter 6.35 mm; Thickness 3.18 mm; Nose radius 0.2 mm.
Turning / Technical reference
Positive turning insert, 35° rhombic, with hole. Inscribed circle diameter 6.35 mm; Thickness 3.18 mm; Nose radius 0.2 mm.
Price and availability to be confirmed in the quotation.

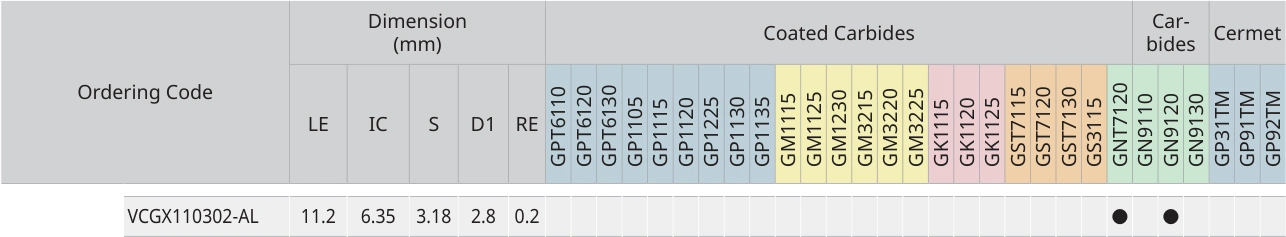

Data for VCGX110302-AL
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 69 of the original PDF ↗
