CCMT09T304-MM
Positive turning insert, 80° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 3.97 mm; Nose radius 0.4 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 59 · View full tableDrawing and dimensions

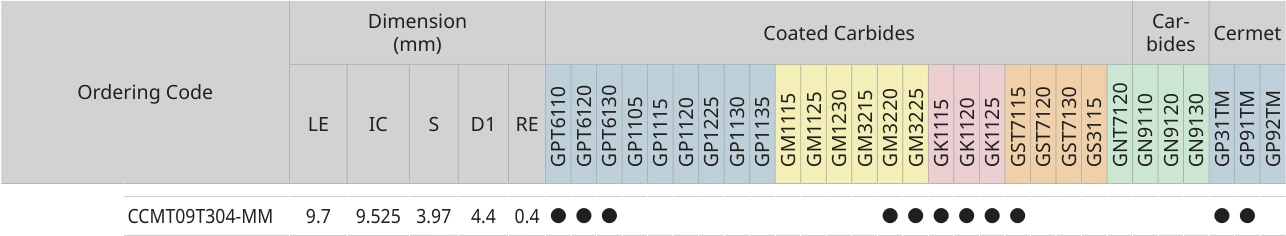

Data for CCMT09T304-MM
Documented data
- LE
- IC
- S
- D1
- RE
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
