Threading / Technical reference
ET138-SJN-U540C-P2
Spiral flute tap, for steel. Threaded length 7 mm; Shank diameter 4 mm; Active length 19 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 149 · View full tableDrawing and dimensions

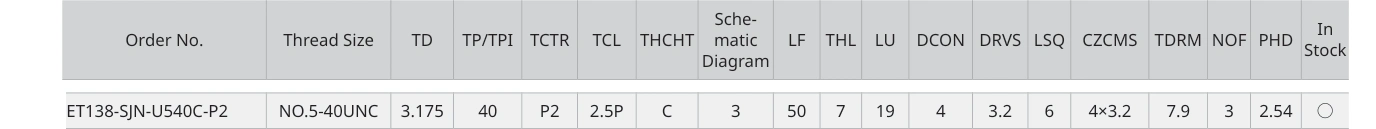

Data for ET138-SJN-U540C-P2
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 149 of the original PDF ↗
