ET168-PJN-U3824B-P3
Spiral point tap, for stainless steel. Threaded length 25 mm; Shank diameter 7 mm; Active length 43 mm.
Price and availability to be confirmed in the quotation.

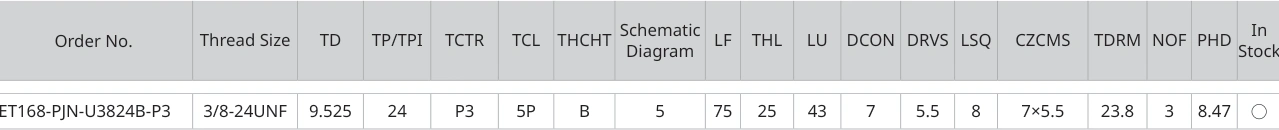

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 156 · View full tableDrawing and dimensions
Data for ET168-PJN-U3824B-P3
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
