Milling / Technical reference
FH200-RN6-16010-H
Solid carbide end mill with 6 flutes, corner radius, long neck. Cutting diameter 16 mm; Cutting length 14 mm; Overall length 150 mm.
Price and availability to be confirmed in the quotation.

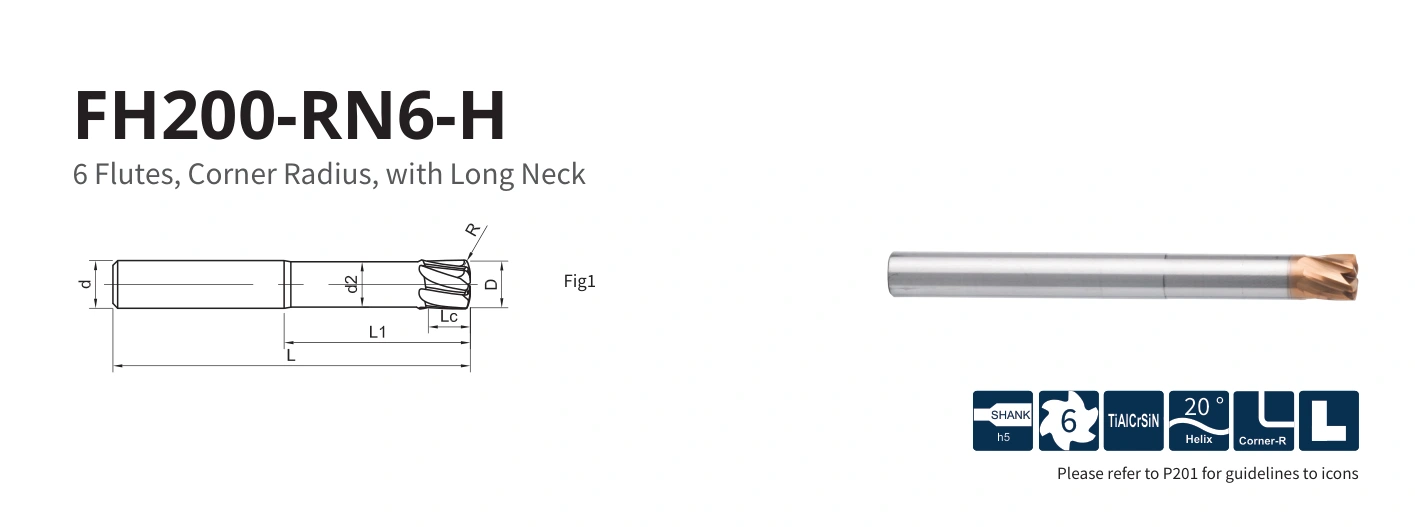

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 285 · View full tableDrawing and dimensions
Data for FH200-RN6-16010-H
Row data
- D · 6
- Lc · 5
- R · 0.375
- d2 · 5.5
- L1 · 24
- L · 100
- d · 6
- Drawing No. · 1
Catalogue information
- Published availability
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 285 of the original PDF ↗
