GUMD-135-5D-F16S
Drill body for a replaceable head. Shank diameter 16 mm; Overall length 133.5 mm; Usable length 70.5 mm.
Price and availability to be confirmed in the quotation.

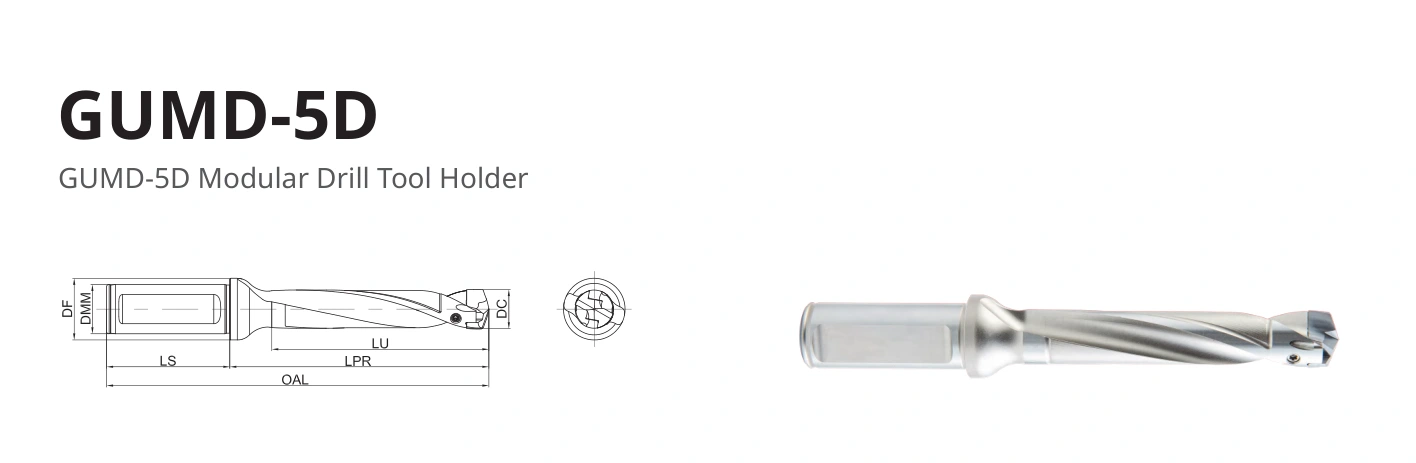

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 80 · View full tableDrawing and dimensions
Data for GUMD-135-5D-F16S
Dimensions
- DMM(h6)
- DF
- LS
- LU
- LPR
- OAL
Catalogue information
- Weight (kg)
- Published availability
Row data
- Matching Tool Bit Size · Dc min
- Matching Tool Bit Size · Dc max
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
