MEE190-050R07A22-WN04
Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 50 mm; Connection diameter 22 mm; Functional length 40 mm. 7 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 62 · View full tableDrawing and dimensions

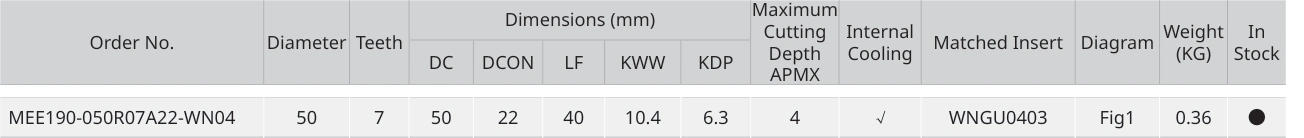

Data for MEE190-050R07A22-WN04
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DC
- DCON
- LF
- KWW
- KDP
- APMX
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 62 of the original PDF ↗
