MFB145-100R06B32-SN12U
Milling cutter body for indexable inserts for face milling. Cutting diameter 100 mm; Connection diameter 32 mm; Functional length 50 mm. 6 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 31 · View full tableDrawing and dimensions

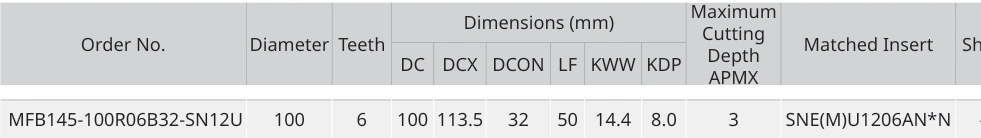

Data for MFB145-100R06B32-SN12U
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DC
- DCX
- DCON
- LF
- KWW
- KDP
- APMX
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
