MFC115-063R05A22-HN09

Name: MFC115-063R05A22-HN09
Brand: GESAC
SKU: MFC115-063R05A22-HN09

Milling cutter body for indexable inserts for face milling. Cutting diameter 63 mm; Connection diameter 22 mm; Functional length 40 mm. 5 cutting positions.

Technical advice

Price and availability to be confirmed in the quotation.

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 36 · View full table

Drawing and dimensions

Data for MFC115-063R05A22-HN09

See the original PDF for this variant's drawing.

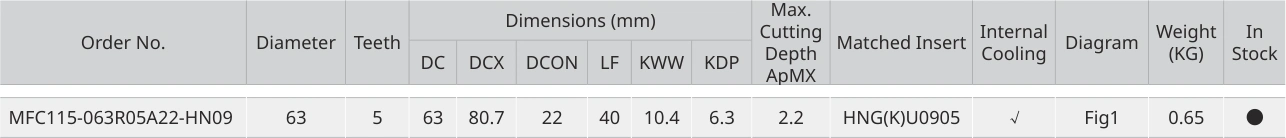

Original headers and row for MFC115-063R05A22-HN09. On mobile, swipe to see all columns.

Documented data

Diameter
Teeth
DC
DCX
DCON
LF
KWW
KDP

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.

View page 36 of the original PDF ↗
