MKB113-100R07B32-SD12

Name: MKB113-100R07B32-SD12
Brand: GESAC
SKU: MKB113-100R07B32-SD12

Milling cutter body for indexable inserts for high-feed milling. Cutting diameter 84 mm; Connection diameter 32 mm; Functional length 50 mm. 7 cutting positions.

Technical advice

Price and availability to be confirmed in the quotation.

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 81 · View full table

Drawing and dimensions

Data for MKB113-100R07B32-SD12

See the original PDF for this variant's drawing.

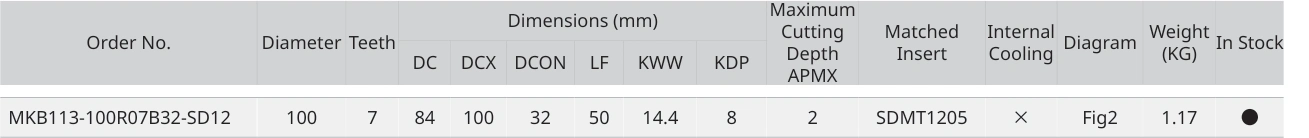

Original headers and row for MKB113-100R07B32-SD12. On mobile, swipe to see all columns.

Documented data

Diameter
Teeth
DC
DCX
DCON
LF
KWW
KDP
APMX

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.

View page 81 of the original PDF ↗
