S10K-SCLCR/L06
Internal turning toolholder. Shank diameter 10 mm; Functional length 125 mm; Minimum bore diameter 12 mm. For inserts CC**0602**.
Price and availability to be confirmed in the quotation.

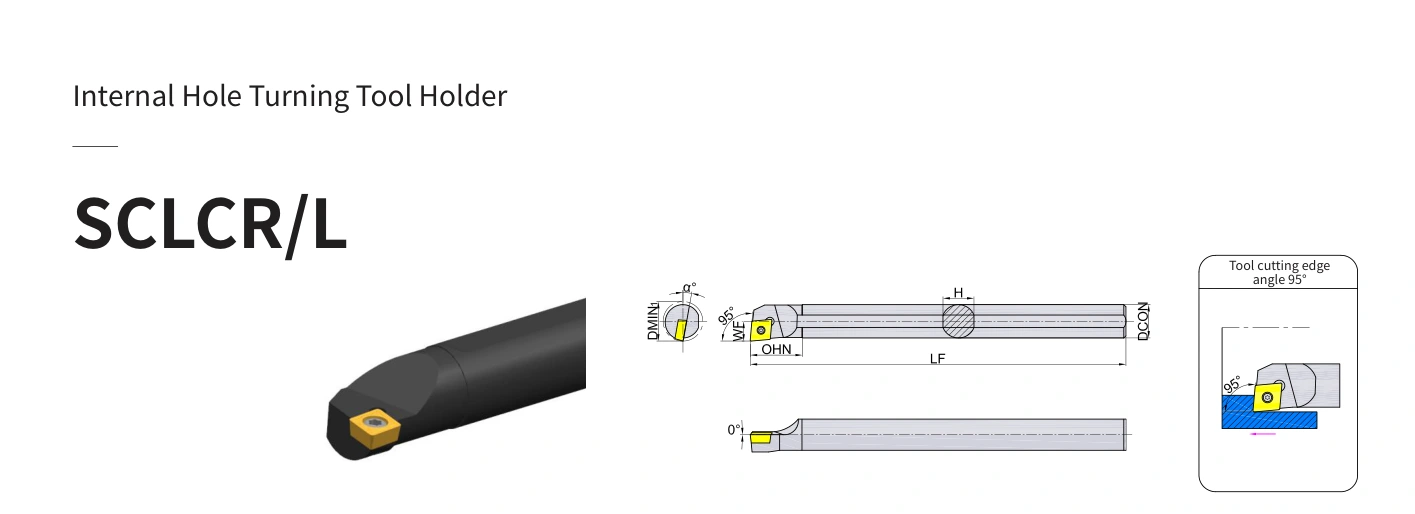

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 182 · View full tableDrawing and dimensions
Data for S10K-SCLCR/L06
Dimensions
- DMIN1 (mm)
- DCON (mm)
- WF (mm)
- LF (mm)
- OHN (mm)
- H (mm)
- α (°)
Compatibility and mounting
- Compatible insert
- Screw
- Wrench
Catalogue information
- Weight (kg)
- Published availability
- Published availability
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 182 of the original PDF ↗
