Turning / Technical reference
S25S-SDXCR/L11
Internal turning toolholder. Shank diameter 25 mm; Functional length 250 mm; Minimum bore diameter 32 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 187 · View full tableDrawing and dimensions

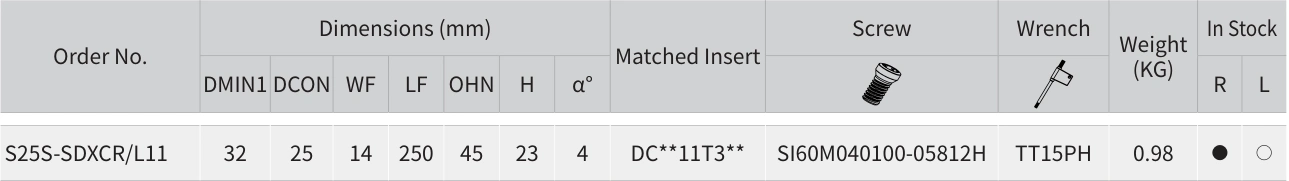

Data for S25S-SDXCR/L11
Documented data
- DMIN1
- DCON
- WF
- LF
- OHN
- H
- Screw
- Wrench
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 187 of the original PDF ↗
