SH260-S6-10-30-H
Solid carbide end mill with 6 flutes, square end. Cutting diameter 10 mm; Cutting length 30 mm; Overall length 75 mm.
Price and availability to be confirmed in the quotation.

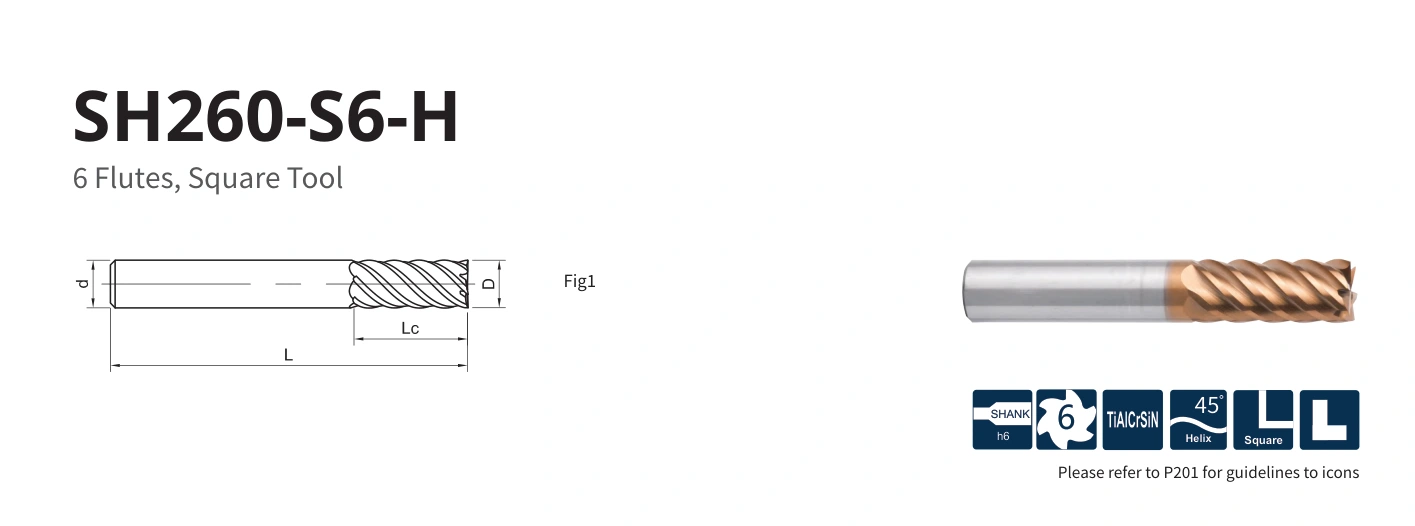

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 265 · View full tableDrawing and dimensions
Data for SH260-S6-10-30-H
Row data
- D · 6
- Lc · 15
- L · 50
- d · 6
- Drawing No. · 1
Catalogue information
- Published availability
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
