SN300-S5-12026
Solid carbide end mill with 5 flutes, square end. Cutting diameter 12 mm; Cutting length 26 mm; Overall length 83 mm.
Price and availability to be confirmed in the quotation.

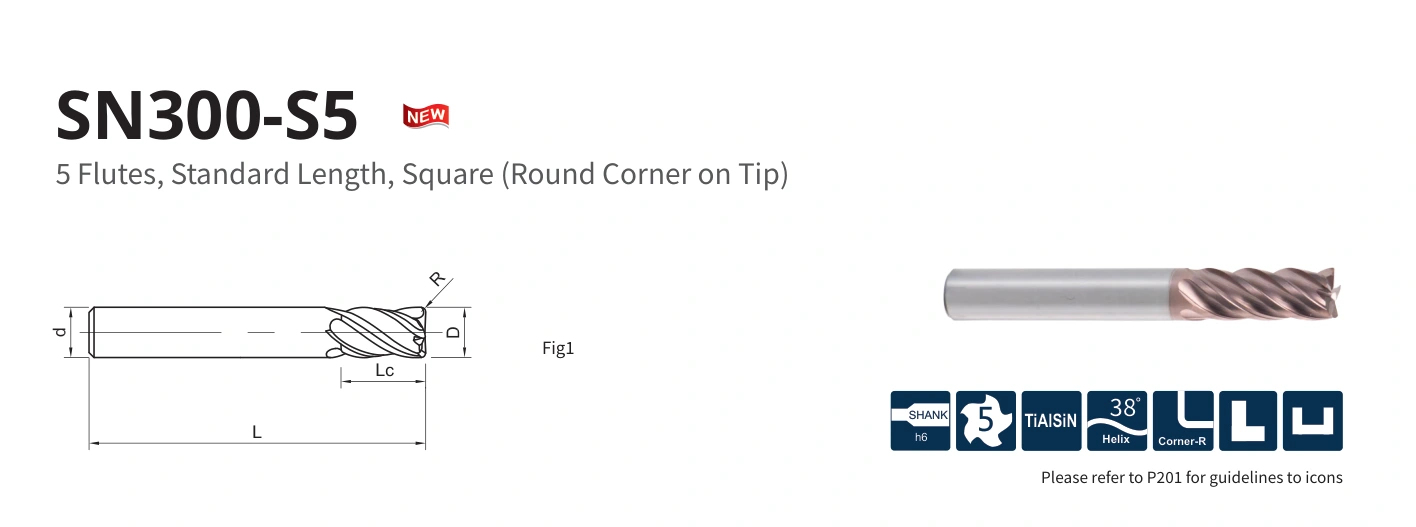

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 245 · View full tableDrawing and dimensions
Data for SN300-S5-12026
Row data
- D · 6
- R · 0.2
- Lc · 16
- L · 50
- d · 6
- Drawing No. · 1
Catalogue information
- Published availability
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
