T118-FDC-050080C-6HX
Forming tap, fluteless, with internal coolant supply. Metric thread M5×0.8. Threaded length 10 mm; Shank diameter 6 mm; Active length 25 mm.
Price and availability to be confirmed in the quotation.

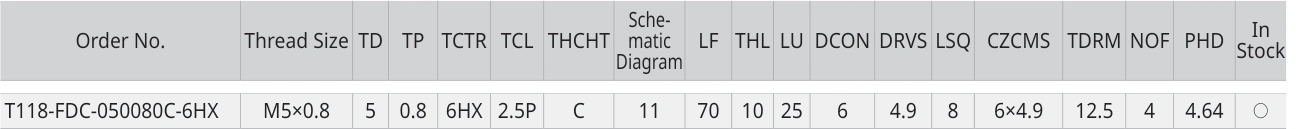

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 142 · View full tableDrawing and dimensions
Data for T118-FDC-050080C-6HX
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
