Threading / Technical reference
T128-HDC-120150C-6HX
Straight flute tap, for cast iron, with internal coolant supply. Threaded length 17 mm; Shank diameter 9 mm; Active length 49 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 145 · View full tableDrawing and dimensions

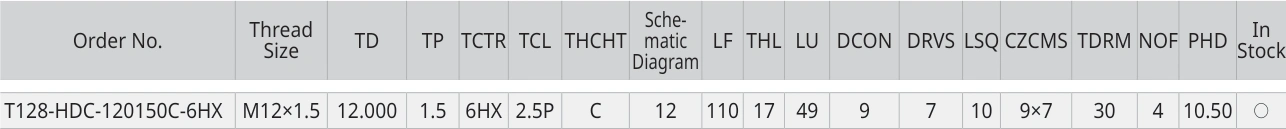

Data for T128-HDC-120150C-6HX
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 145 of the original PDF ↗
