CNMG120408-SMM
Negative turning insert, 80° rhombic, with hole. Inscribed circle diameter 12.7 mm; Thickness 4.76 mm; Nose radius 0.8 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 38 · View full tableDrawing and dimensions

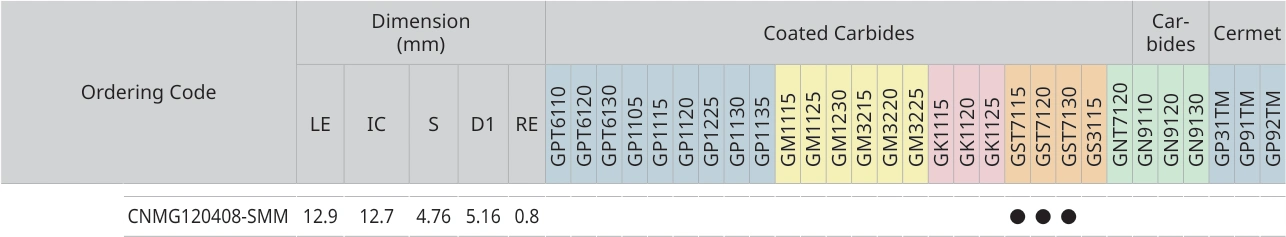

Data for CNMG120408-SMM
Documented data
- LE
- IC
- S
- D1
- RE
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 38 of the original PDF ↗
