CNMG160612-LR
Negative turning insert, 80° rhombic, with hole. Inscribed circle diameter 15.875 mm; Thickness 6.35 mm; Nose radius 1.2 mm.
Price and availability to be confirmed in the quotation.

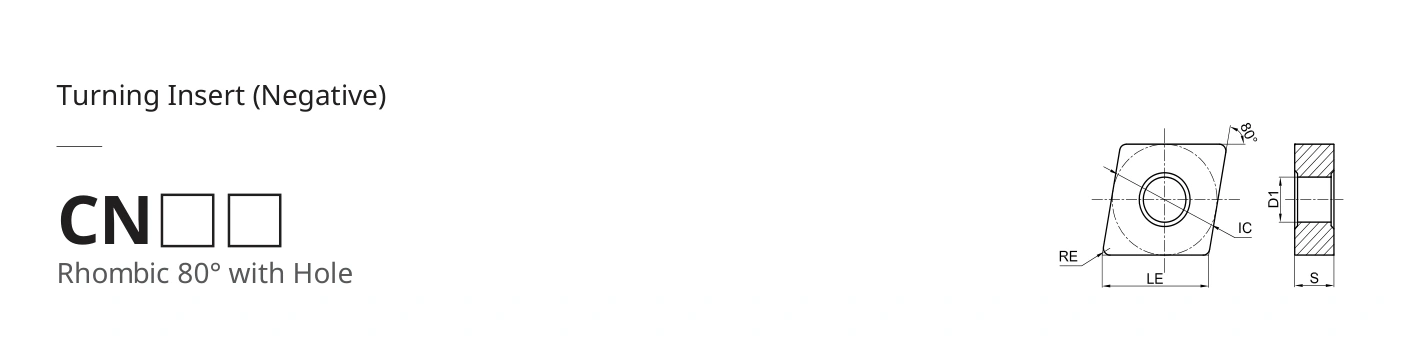

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 39 · View full tableDrawing and dimensions
Data for CNMG160612-LR
Dimensions
- LE (mm)
- 16.1
- IC (mm)
- 15.875
- S (mm)
- 6.35
- D1 (mm)
- 6.35
- RE (mm)
- 1.2
Row data
- Coated carbides · GM1115
- ●
- Coated carbides · GM3225
- ●
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
