Turning / Technical reference
CNMG190608-EL
Negative turning insert, 80° rhombic, with hole. Inscribed circle diameter 19.05 mm; Thickness 6.35 mm; Nose radius 0.8 mm.
Price and availability to be confirmed in the quotation.

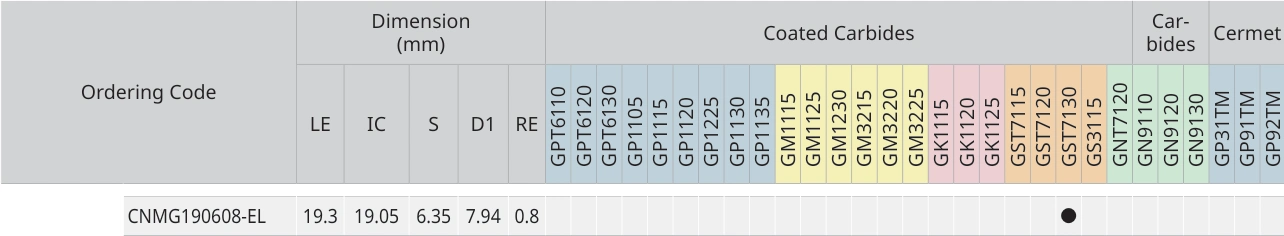

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 36 · View full tableDrawing and dimensions
Data for CNMG190608-EL
Documented data
- LE
- IC
- S
- D1
- RE
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 36 of the original PDF ↗
