MET190-032R02M16-AD18
Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 32 mm; Connection diameter 17 mm; Functional length 45 mm. 2 cutting positions.
Price and availability to be confirmed in the quotation.

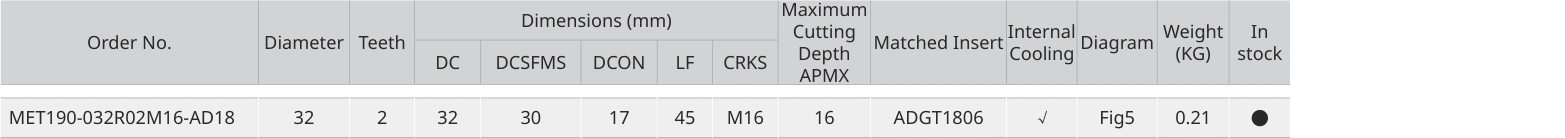

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 53 · View full tableDrawing and dimensions
Data for MET190-032R02M16-AD18
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DCON
- APMX
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 53 of the original PDF ↗
