MET190-040R03M20-AD18
Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 40 mm; Connection diameter 21 mm; Functional length 45 mm. 3 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 53 · View full tableDrawing and dimensions

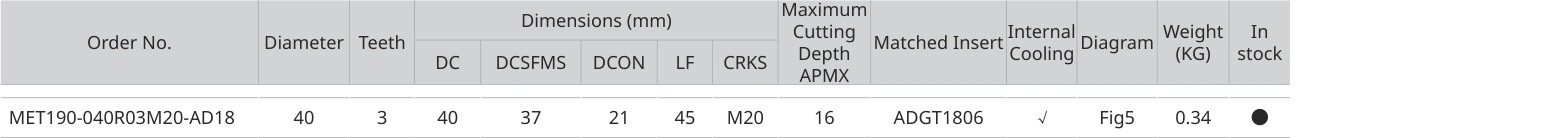

Data for MET190-040R03M20-AD18
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DCON
- APMX
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 53 of the original PDF ↗
