MFC160-200R16C60-HN09
Milling cutter body for indexable inserts for face milling. Cutting diameter 200 mm; Connection diameter 60 mm; Functional length 63 mm. 16 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 40 · View full tableDrawing and dimensions

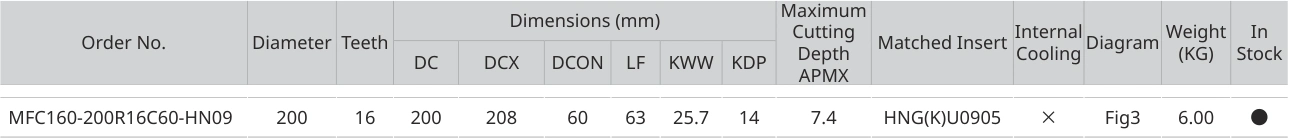

Data for MFC160-200R16C60-HN09
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DC
- DCX
- DCON
- LF
- KWW
- KDP
- APMX
- Weight (kg)
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 40 of the original PDF ↗
