Turning / Technical reference
PCBNR/L4040S2509
External turning toolholder. Functional length 250 mm; Height H 40 mm; Width B 40 mm. For inserts CN**2509**.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 167 · View full tableDrawing and dimensions

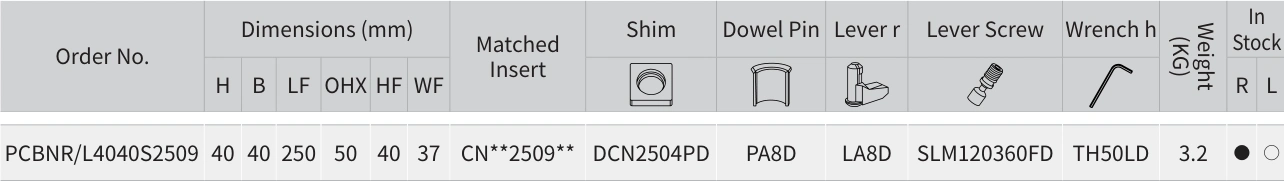

Data for PCBNR/L4040S2509
See the original PDF for this variant's drawing.
Documented data
- H
- B
- LF
- Matched insert
- Weight (kg)
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 167 of the original PDF ↗
