PDJNR/L2020K1504
External turning toolholder. Functional length 125 mm; Height H 20 mm; Width B 20 mm. For inserts DN**1504**.
Price and availability to be confirmed in the quotation.

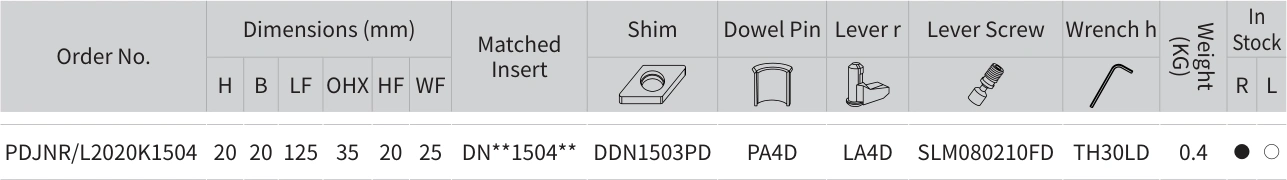

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 169 · View full tableDrawing and dimensions
Data for PDJNR/L2020K1504
Documented data
- H
- 20
- B
- 20
- LF
- 125
- Matched insert
- Weight (kg)
- 0.4
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 169 of the original PDF ↗
