PDJNR/L2525M11
External turning toolholder. Functional length 150 mm; Height H 25 mm; Width B 25 mm. For inserts DN**1104**.
Price and availability to be confirmed in the quotation.

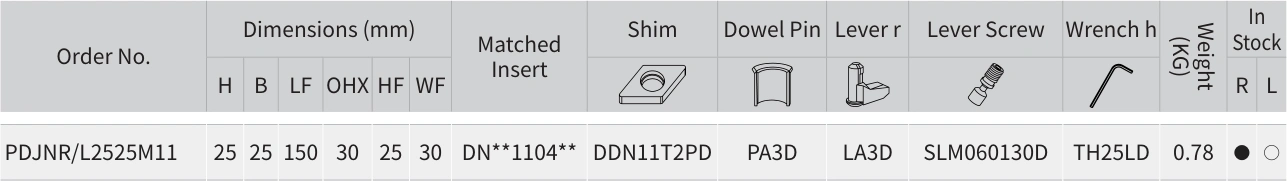

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 169 · View full tableDrawing and dimensions
Data for PDJNR/L2525M11
Documented data
- H
- B
- LF
- Matched insert
- Weight (kg)
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
