SHM200-BN2-3.5-25-K
Solid carbide end mill with 2 flutes, ball nose. Cutting diameter 3.5 mm; Cutting length 2.8 mm; Overall length 70 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 318 · View full tableDrawing and dimensions

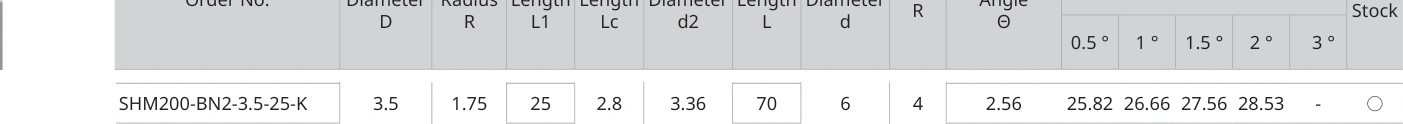

Data for SHM200-BN2-3.5-25-K
Documented data
- D
- R
- L1
- Lc
- d2
- L
- d
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
