SHM200-RN4-4-40-0.1-K
Solid carbide end mill with 4 flutes, corner radius. Cutting diameter 4 mm; Cutting length 3.2 mm; Overall length 80 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 314 · View full tableDrawing and dimensions

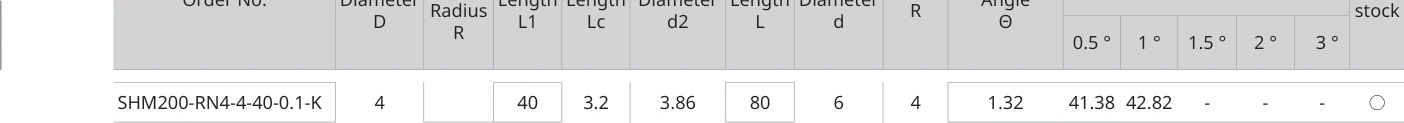

Data for SHM200-RN4-4-40-0.1-K
Documented data
- D
- L1
- Lc
- d2
- L
- d
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 314 of the original PDF ↗
